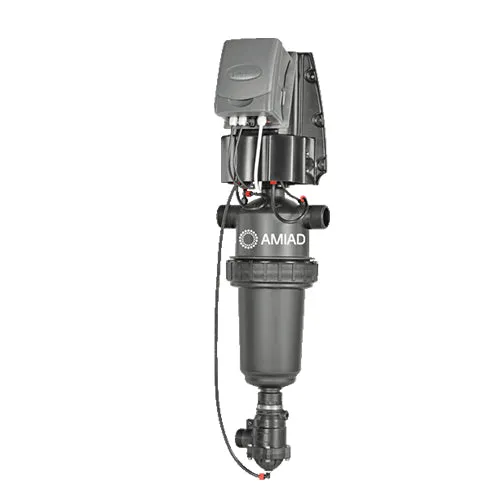

Amiad TAF 750 80mm Fully Automatic Self-Cleaning Electric Screen Filter with AC Controller - 1200 cm² (95- 830LPM)
TAF Series self-cleaning water screen filters. Innovative self-cleaning high quality plastic filter for a wide variety of applications. The TAF self-cleaning filter provides high filtration efficiency with polymeric construction and Amiad’s proven suction-scanning cleaning technology. The reliable operating mechanism and simple construction makes it the ideal solution for protecting irrigation systems. The TAF is a compact filter offering low power consumption, continuous flow during flush and flexible control options.
FEATURES
- Unique electric drive mechanisms
- Automatic flushing according to differential pressure and/or time
- Option for continuous flushing
- Low power consumption
- No interruption of downstream flow during flushing
- Electronically monitored cleaning with flexible control options
- Applications: Water supply systems, cooling water, wastewater treatment, Innovative self-cleaning high quality plastic filter for a wide variety of applications.

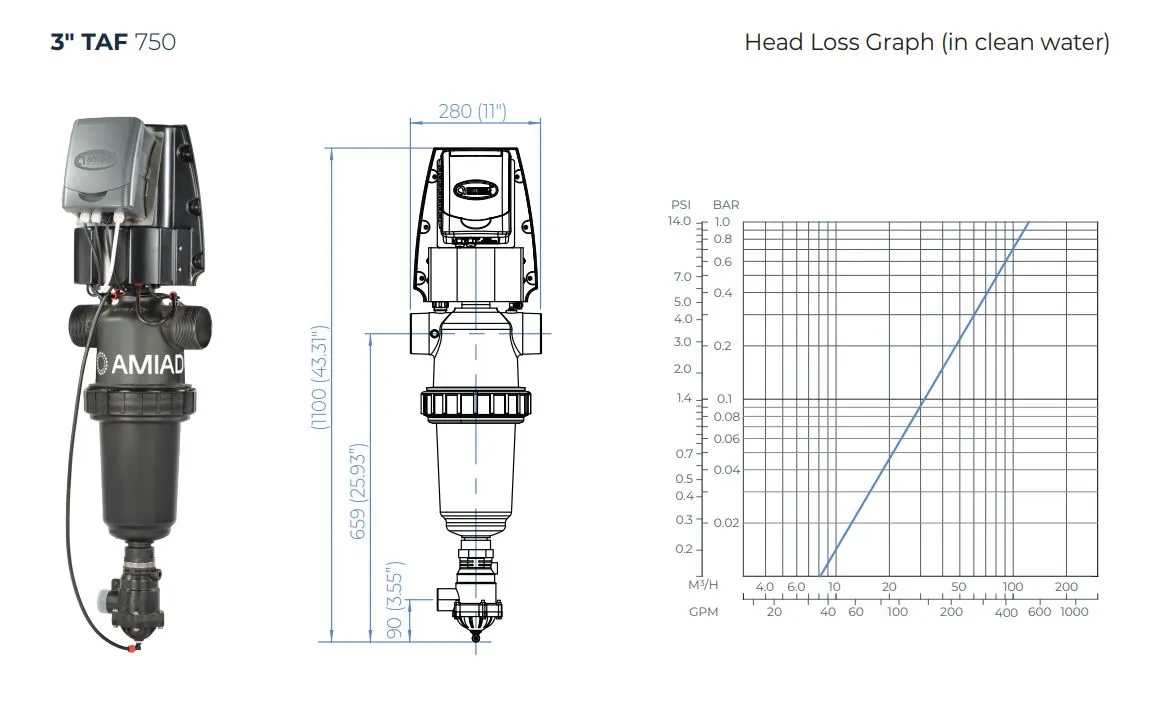

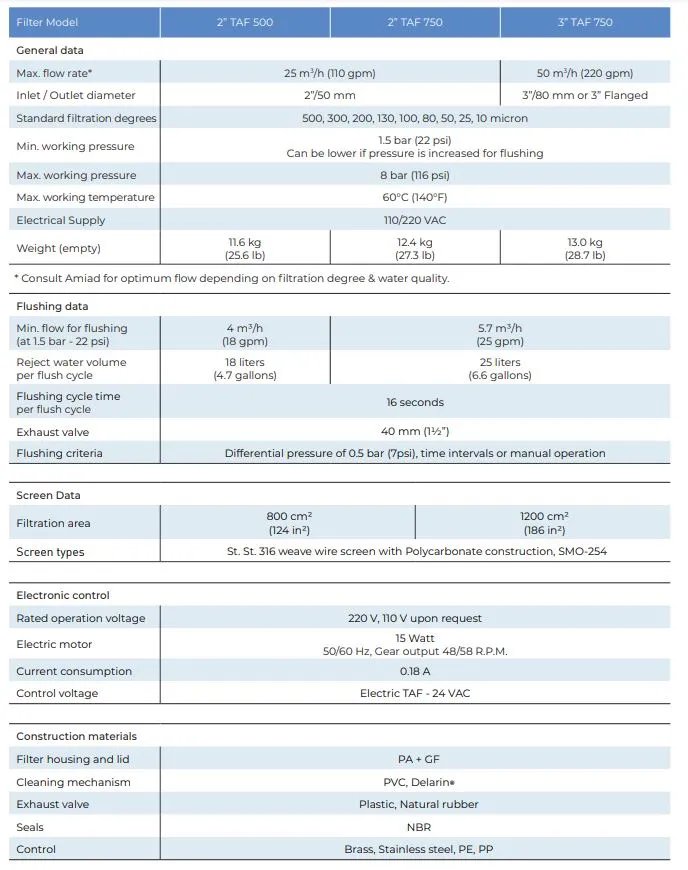

SPECIFICATIONS
- Screen area: 1200 cm²
- Maximum flow rate: 50 m³/h
- Minimum flow required for flushing: 5.7m³/h
- Inlet/Outlet diameter: 3"/80 mm
- Standard filtration degrees: 500, 300, 200, 130, 100, 80, 50, 25, 10 micron
- Min working pressure: 1.5 bar [22 psi]
- Can be lower if pressure is increased for flushing
- Max. working pressure: 8 bar (116 psi)

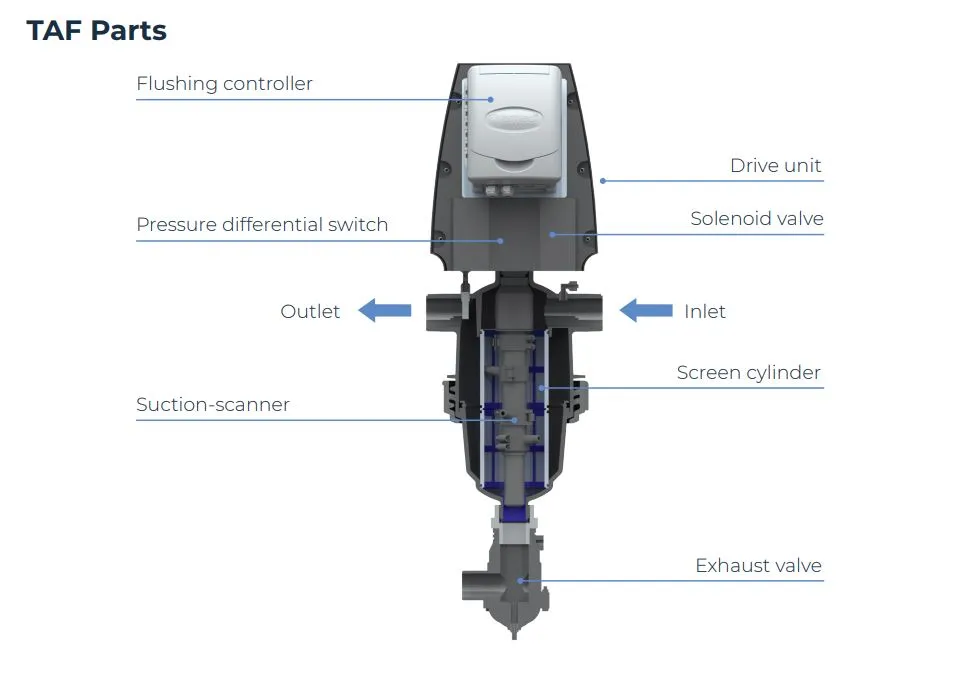

- Scanaway flushing mechanism with electrical motor.
- Max. working temperature: 60°C (140 °F)
- Electrical Supply: 110 or 220 VAC
