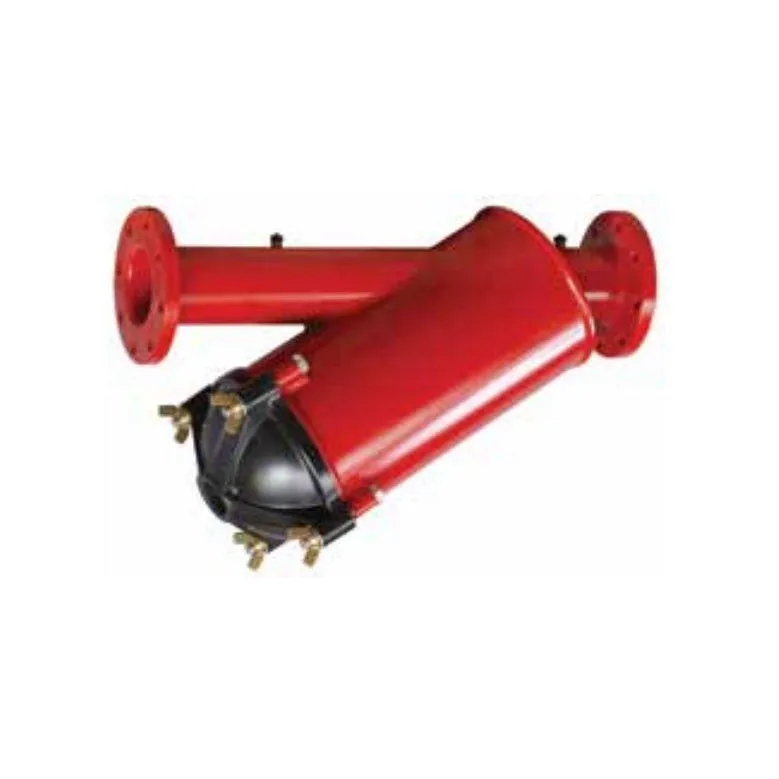

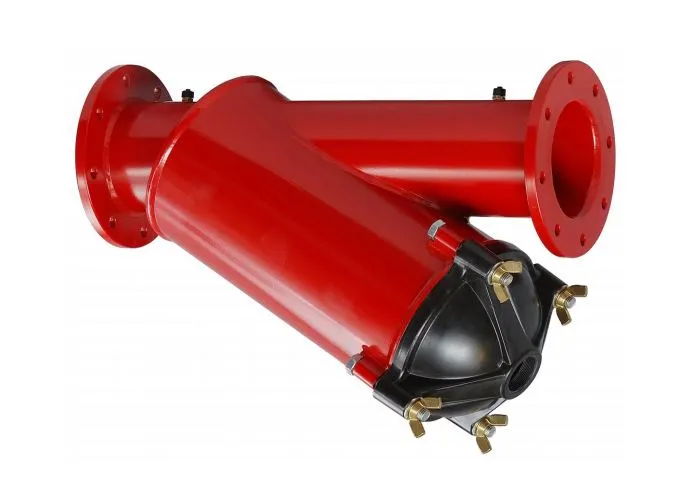

Amiad Super 100mm Flanged Manual Steel SS Weavewire Screen Filters with 2800cm² Filtration Area
The Amiad 4" Super Filter series of manual filters remove dirt and debris from water as it flows through a stainless steel filtration element. This consists of a perforated cylinder or a weave-wire screen. Filtration elements are available for various degrees of filtration and are color coded for convenient identification. Water flows through the filter element from the inside-out so that dirt and debris accumulate on the inside surface. The direction of flow is indicated by an arrow on the filter housing. The 4"-S and the 6"-C manual steel filters have to be cleaned manually. For optional accessories for automatic or semi-automatic operation please consult your Amiad dealer.
FEATURES
- Interchangeable filter elements for wide range of flow rates, filtration degrees and applications
- High quality polyester coating as well as stainless steel housings for chemical durability and corrosion resistance
- Low pressure loss
- Easy to install and maintain, no tools required for rinsing
- Available with exclusive features for semi-automatic cleaning
- Innovative add-on clogging indicator

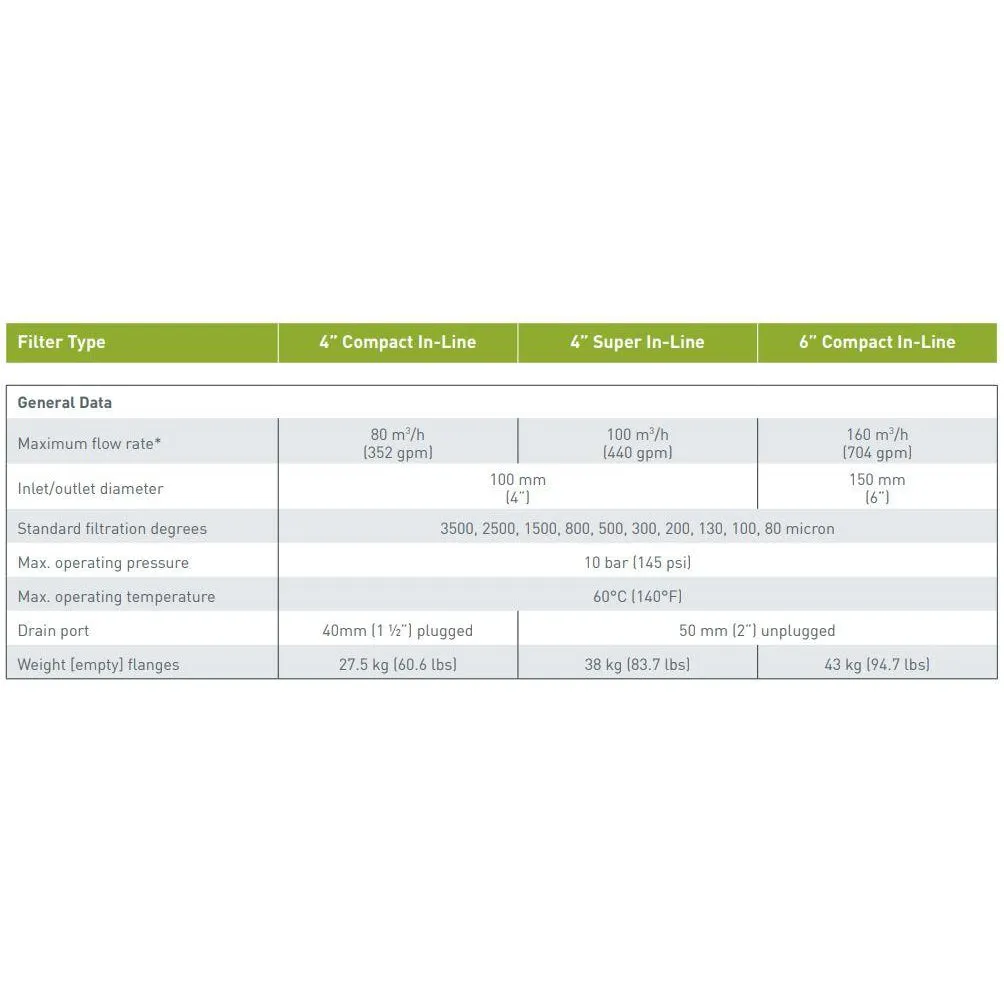

SPECIFIACTIONS
Maximum flow rate: 100m3h
Filtration area: 2800cm²
Inlet/outlet diameter: 100mm (flanged)
Max operating pressure: 10 Bar (145 PSI)
Max operating temperature: 60°C
Drain port: 50mm (2") unplugged
Weight empty (flanged): 38kg

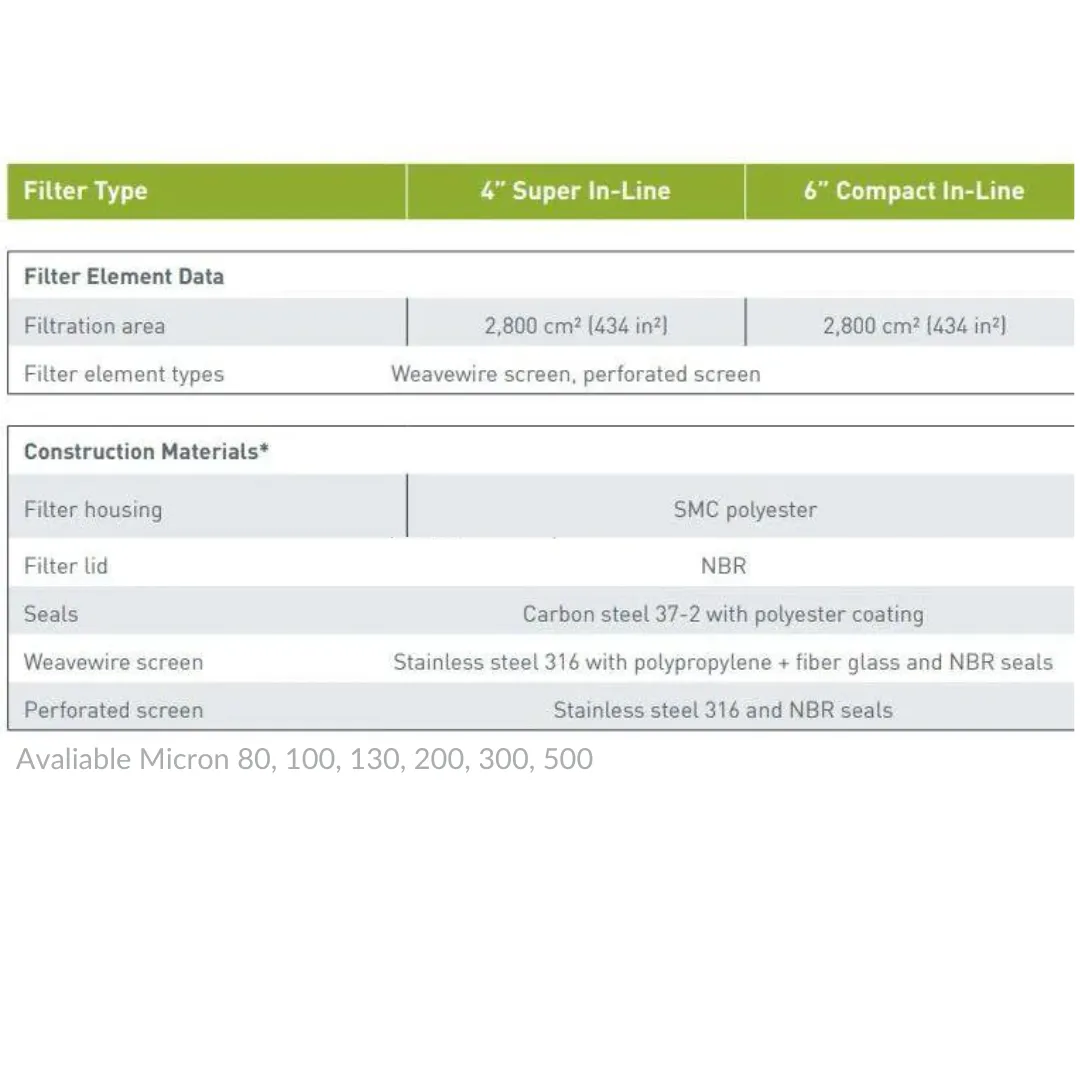

Filter housing construction: SMC Polyester
Filter lid construction: NBR
Seals: Carbon steel 37-2 with polyester coating
Weavewire screen: Stainless Steel 316 with Polypropylene Fiber Glass and NBR Seals
